Classic Instruments G/Stock 1966-67 Nova Package for Chevrolet Chevy II
Part # NO66GSSKU CLANO66GS
Set your vehicle above for a fit verdict. 1 vehicle listed below.
| Brand | Classic Instruments |
|---|---|
| Part type | Gauge Set |
| Ammeter Gauge Included | No |
| Boost Gauge Included | No |
| Brake Bias Gauge Included | No |
| Brand | Classic Instruments |
| Bulb Type | Incandescent |
| Bulbs Included | Yes |
| Category | Body |
| Clock Included | No |
| Color | Black |
| Display Type | Analog |
| Emission Code | 6 |
| Finish | Black And Green |
| Fuel Level Gauge Included | Yes |
| Fuel Pressure Gauge Included | No |
| Gauge Background Color | Black |
| Gauge Face Color | Black |
| Gauge Series | G/Stock |
| Gauge Style | Analog |
| Grade Type | Specialty |
| Hour Meter Included | No |
| Illuminated | Yes |
| Illumination Color | White |
| Mounting Hardware Included | Yes |
| OEM Replacement | Yes |
| Oil Pressure Gauge Included | Yes |
| Oil Temperature Gauge Included | No |
| part type | Gauge Set |
| Product Type | Gauge Set |
| Pyrometer Included | No |
| Quantity | 1 |
| UPC / GTIN | 00090127818374 |
| Warranty | Manufacturer's 7 year Warranty |
- A separate connection and harness for an external shift light on the back of the cluster
- Wiring is handled with a single wire harness connection on the back of the cluster
- Green LED turn signal indicators, red warning light, and a blue high beam indicator
- Built-in ECM signal filter switch
- The wire harness includes a separate power (12V) and ground lead to allow the customer the flexibility to add things such as a check engine, emergency brake, open door, or low oil pressure indicator
- A new, laser-cut plastic lens is provided with the cluster
- Programmable fuel gauge compatible with any ohm range, featuring a selector switch on the back of the cluster. Works with stock (0-90 ohm), any factory, or Classic Instruments fuel sending units.
- Classic Instruments’ Zeus Speedometer Technology is built-in meaning the cluster requires no external control boxes and works directly with ECM or VSS signals
- Speedometer calibration is quick and easy with push-button control
Description

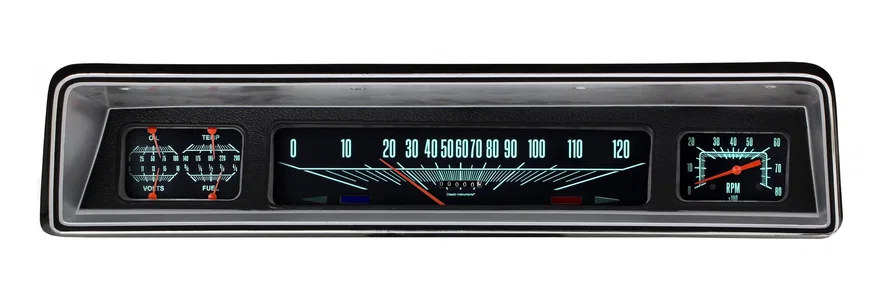

The G/Stock;1966-67 Nova direct-fit cluster features a speedometer, tachometer, fuel level, temperature, oil pressure, and volt gauges; along with indicator lights. All the gauges are electronic operation and the molded plastic housing has been design with factory fitment in mind. The cluster mounts in the original factory bezel and uses the original diffuser plate, both of which will need to be re-used from your original cluster.
More from Classic Instruments
| AN00SHC | $1,165.99 |
| CH51AN52-LS | $1,670.99 |
| CV70AN | $2,240.99 |
| AN50SLC | $1,269.99 |
| CH51AT52-LS | $1,670.99 |
| AN65SLC | $1,867.99 |
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1966 - 1967 | Chevrolet | Chevy II | Nova |
