Classic Instruments G/Stock Package
Part # CT67GSSKU CLACT67GS
Set your vehicle above for a fit verdict. 61 vehicles listed below.
| Brand | Classic Instruments |
|---|---|
| Part type | Gauge Set |
| Application | 1967-1972 Chevy / Gmc Truck |
| Bezel Included | No |
| Brand | Classic Instruments |
| Bulb Type | Incandescent |
| Category | Body |
| Color | Green and Black |
| Display Type | Analog |
| Emission Code | 6 |
| Finish | Black |
| Gauge Background Color | Black/Green |
| Gauge Series | G/Stock |
| Grade Type | Specialty |
| Illuminated | Yes |
| Illumination Color | White |
| part type | Gauge Set |
| Product Type | Gauge Set |
| Sub Category | Instrument Panel |
| Universal Or Specific Fit | Specific Fit |
| Warranty | Manufacturer's 7 Year Warranty |
| UPC / GTIN | 00090127145616 |
| Warranty | Manufacturer's 7 year Warranty |
- High beam indicator hidden at the top of the tachometer, red LED HaloTM
- Standard GM sender kit included (temp., fuel, oil, speedometer senders), part no. SNGM
- LED lighting with built-in LED dimmer, and molded “light intensifier” ring for bright, even lighting. Brightness of the LEDs can be adjusted with a potentiometer on the back of the cluster
- Turn signal indicators in the left and right sides of cluster, green LEDs
Description

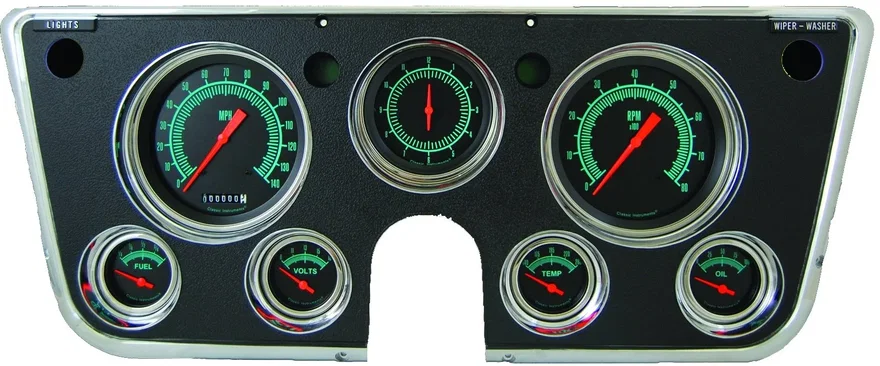

The 1967-72 Chevy Truck Package with our;G-Stock Series installed, features a 4 5/8" Speedometer and tachometer, 3 3/8" Clock, and 2 1/8" Fuel (0-90 OHM), Oil, Temp, and Volt gauges. A blue LED high beam indicator is installed in the speedometer.;The set includes pre-wired electrical connections, mounting hardware, all necessary* sending units, and a wiring harness;constructed of automotive grade TXL wire, machine-crimped terminals, tech-flex sleeving, and Molex main connectors. It is equipped with our ZST™ and works directly with ECM or VSS signals so no additional control box is needed.
More from Classic Instruments
| AN00SHC | $1,165.99 |
| CH51AN52-LS | $1,670.99 |
| CV70AN | $2,240.99 |
| AN50SLC | $1,269.99 |
| CH51AT52-LS | $1,670.99 |
| AN65SLC | $1,867.99 |
| Year | Make | Model | Submodel | Body Style | Engine |
|---|---|---|---|---|---|
| 1969 - 1972 | Chevrolet | Blazer | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 307 V8, 5.7L 350 V8 |
| 1967 | Chevrolet | C10 Pickup | Base | - | 3.8L 230 I6, 4.1L 250 I6, 4.6L 283 V8, 4.8L 292 I6, 5.3L 327 V8 |
| 1968 | Chevrolet | C10 Pickup | Base | - | 3.8L 230 I6, 4.1L 250 I6, 4.8L 292 I6, 5.0L 307 V8, 5.3L 327 V8, 5.4L 327 V8, 6.5L 396 V8 |
| 1969 | Chevrolet | C10 Pickup | Base | - | 3.8L 230 I6, 4.1L 250 I6, 4.8L 292 I6, 5.0L 307 V8, 5.3L 327 V8, 5.7L 350 V8, 6.5L 396 V8 |
| 1970 - 1972 | Chevrolet | C10 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 307 V8, 5.7L 350 V8, 6.6L 402 V8 |
| 1967 | Chevrolet | C10 Suburban | Base | - | 4.1L 250 I6, 4.6L 283 V8, 4.8L 292 I6, 5.3L 327 V8 |
| 1968 | Chevrolet | C10 Suburban | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 307 V8, 5.3L 327 V8, 5.4L 327 V8, 6.5L 396 V8 |
| 1969 | Chevrolet | C10 Suburban | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 307 V8, 5.3L 327 V8, 5.7L 350 V8, 6.5L 396 V8 |
| 1970 - 1972 | Chevrolet | C10 Suburban | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 307 V8, 5.7L 350 V8, 6.6L 402 V8 |
| 1969 | Chevrolet | C10 Suburban | Base | Sport Utility | 4.8L 292 I6, 5.0L 307 V8 |
| 1970 - 1972 | Chevrolet | C10 Suburban | Base | Sport Utility | 4.8L 292 I6 |
| 1967 | Chevrolet | C20 Pickup | Base | - | 4.1L 250 I6, 4.6L 283 V8, 4.8L 292 I6, 5.3L 327 V8 |
| 1968 | Chevrolet | C20 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 307 V8, 5.3L 327 V8, 5.4L 327 V8, 6.5L 396 V8 |
| 1969 | Chevrolet | C20 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 307 V8, 5.3L 327 V8, 5.7L 350 V8, 6.5L 396 V8 |
| 1970 - 1972 | Chevrolet | C20 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 307 V8, 5.7L 350 V8, 6.6L 402 V8 |
| 1967 | Chevrolet | C20 Suburban | Base | - | 4.1L 250 I6, 4.6L 283 V8, 4.8L 292 I6, 5.3L 327 V8 |
| 1968 | Chevrolet | C20 Suburban | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 307 V8, 5.3L 327 V8, 6.5L 396 V8 |
| 1969 | Chevrolet | C20 Suburban | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 307 V8, 5.3L 327 V8, 5.7L 350 V8, 6.5L 396 V8 |
| 1970 - 1972 | Chevrolet | C20 Suburban | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 307 V8, 5.7L 350 V8, 6.6L 402 V8 |
| 1967 | Chevrolet | C30 Pickup | Base | - | 4.1L 250 I6, 4.6L 283 V8, 4.8L 292 I6, 5.3L 327 V8 |
| 1968 | Chevrolet | C30 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 307 V8, 5.3L 327 V8, 5.4L 327 V8, 6.5L 396 V8 |
| 1969 | Chevrolet | C30 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 307 V8, 5.3L 327 V8, 5.7L 350 V8, 6.5L 396 V8 |
| 1970 - 1972 | Chevrolet | C30 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 307 V8, 5.7L 350 V8, 6.6L 402 V8 |
| 1967 | GMC | C15/C1500 Pickup | Base | - | 3.8L 230 I6, 4.1L 250 I6, 4.6L 283 V8, 4.8L 292 I6, 5.0L 305 V6, 5.3L 327 V8, 5.7L 351 V6 |
| 1968 | GMC | C15/C1500 Pickup | Base | - | 3.8L 230 I6, 4.1L 250 I6, 4.8L 292 I6, 5.0L 305 V6, 5.0L 307 V8, 5.3L 327 V8, 5.4L 327 V8, 5.7L 351 V6, 6.5L 396 V8 |
| 1969 | GMC | C15/C1500 Pickup | Base | - | 3.8L 230 I6, 4.1L 250 I6, 4.8L 292 I6, 5.0L 305 V6, 5.0L 307 V8, 5.7L 350 V8, 6.5L 396 V8 |
| 1970 - 1972 | GMC | C15/C1500 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 307 V8, 5.7L 350 V8, 6.6L 402 V8 |
| 1967 | GMC | C15/C1500 Suburban | Base | - | 4.1L 250 I6, 4.6L 283 V8, 4.8L 292 I6, 5.0L 305 V6, 5.3L 327 V8, 5.7L 351 V6 |
| 1968 | GMC | C15/C1500 Suburban | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 305 V6, 5.0L 307 V8, 5.3L 327 V8, 5.4L 327 V8, 5.7L 351 V6, 6.5L 396 V8 |
| 1969 | GMC | C15/C1500 Suburban | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 305 V6, 5.0L 307 V8, 5.7L 350 V8, 6.5L 396 V8 |
| 1970 - 1972 | GMC | C15/C1500 Suburban | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 307 V8, 5.7L 350 V8, 6.6L 402 V8 |
| 1967 | GMC | C25/C2500 Pickup | Base | - | 4.1L 250 I6, 4.6L 283 V8, 4.8L 292 I6, 5.0L 305 V6, 5.3L 327 V8, 5.7L 351 V6 |
| 1968 | GMC | C25/C2500 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 305 V6, 5.0L 307 V8, 5.3L 327 V8, 5.4L 327 V8, 5.7L 351 V6, 6.5L 396 V8 |
| 1969 | GMC | C25/C2500 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 305 V6, 5.0L 307 V8, 5.7L 350 V8, 6.5L 396 V8 |
| 1970 - 1972 | GMC | C25/C2500 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 307 V8, 5.7L 350 V8, 6.6L 402 V8 |
| 1967 | GMC | C25/C2500 Suburban | Base | - | 4.1L 250 I6, 4.6L 283 V8, 4.8L 292 I6, 5.0L 305 V6, 5.3L 327 V8, 5.7L 351 V6 |
| 1968 | GMC | C25/C2500 Suburban | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 305 V6, 5.0L 307 V8, 5.3L 327 V8, 5.4L 327 V8, 5.7L 351 V6, 6.5L 396 V8 |
| 1969 | GMC | C25/C2500 Suburban | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 305 V6, 5.0L 307 V8, 5.7L 350 V8, 6.5L 396 V8 |
| 1970 - 1972 | GMC | C25/C2500 Suburban | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 307 V8, 5.7L 350 V8, 6.6L 402 V8 |
| 1967 | GMC | C35/C3500 Pickup | Base | - | 4.1L 250 I6, 4.6L 283 V8, 4.8L 292 I6, 5.0L 305 V6, 5.3L 327 V8, 5.7L 351 V6 |
| 1968 | GMC | C35/C3500 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 305 V6, 5.0L 307 V8, 5.3L 327 V8, 5.4L 327 V8, 5.7L 351 V6, 6.5L 396 V8 |
| 1969 | GMC | C35/C3500 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 305 V6, 5.0L 307 V8, 5.7L 350 V8, 6.5L 396 V8 |
| 1970 - 1972 | GMC | C35/C3500 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 307 V8, 5.7L 350 V8, 6.6L 402 V8 |
| 1970 - 1972 | GMC | Jimmy | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 307 V8, 5.7L 350 V8 |
| 1967 | GMC | K15/K1500 Pickup | Base | - | 3.8L 230 I6, 4.1L 250 I6, 4.6L 283 V8, 4.8L 292 I6, 5.0L 305 V6, 5.3L 327 V8, 5.7L 351 V6 |
| 1968 | GMC | K15/K1500 Pickup | Base | - | 3.8L 230 I6, 4.1L 250 I6, 4.8L 292 I6, 5.0L 305 V6, 5.0L 307 V8, 5.3L 327 V8, 5.4L 327 V8, 5.7L 351 V6, 6.5L 396 V8 |
| 1969 | GMC | K15/K1500 Pickup | Base | - | 3.8L 230 I6, 4.1L 250 I6, 4.8L 292 I6, 5.0L 305 V6, 5.0L 307 V8, 5.7L 350 V8, 6.5L 396 V8 |
| 1970 - 1972 | GMC | K15/K1500 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 307 V8, 5.7L 350 V8, 6.6L 402 V8 |
| 1967 | GMC | K15/K1500 Suburban | Base | - | 4.1L 250 I6, 4.6L 283 V8, 4.8L 292 I6, 5.0L 305 V6, 5.3L 327 V8, 5.7L 351 V6 |
| 1968 | GMC | K15/K1500 Suburban | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 305 V6, 5.0L 307 V8, 5.3L 327 V8, 5.4L 327 V8, 5.7L 351 V6, 6.5L 396 V8 |
| 1969 | GMC | K15/K1500 Suburban | Base | - | 4.1L 250 I6, 5.0L 305 V6, 5.0L 307 V8, 5.7L 350 V8, 6.5L 396 V8 |
| 1970 - 1971 | GMC | K15/K1500 Suburban | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 307 V8, 5.7L 350 V8, 6.6L 402 V8 |
| 1972 | GMC | K15/K1500 Suburban | Base | - | 4.1L 250 I6, 5.0L 307 V8, 5.7L 350 V8, 6.6L 402 V8 |
| 1967 | GMC | K25/K2500 Pickup | Base | - | 4.1L 250 I6, 4.6L 283 V8, 4.8L 292 I6, 5.0L 305 V6, 5.3L 327 V8, 5.7L 351 V6 |
| 1968 | GMC | K25/K2500 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 305 V6, 5.0L 307 V8, 5.3L 327 V8, 5.4L 327 V8, 5.7L 351 V6, 6.5L 396 V8 |
| 1969 | GMC | K25/K2500 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 305 V6, 5.0L 307 V8, 5.7L 350 V8, 6.5L 396 V8 |
| 1970 - 1972 | GMC | K25/K2500 Pickup | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 307 V8, 5.7L 350 V8, 6.6L 402 V8 |
| 1967 | GMC | K25/K2500 Suburban | Base | - | 4.1L 250 I6, 4.6L 283 V8, 4.8L 292 I6, 5.0L 305 V6, 5.3L 327 V8, 5.7L 351 V6 |
| 1968 | GMC | K25/K2500 Suburban | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 305 V6, 5.0L 307 V8, 5.3L 327 V8, 5.4L 327 V8, 5.7L 351 V6, 6.5L 396 V8 |
| 1969 | GMC | K25/K2500 Suburban | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 305 V6, 5.0L 307 V8, 5.7L 350 V8, 6.5L 396 V8 |
| 1970 - 1972 | GMC | K25/K2500 Suburban | Base | - | 4.1L 250 I6, 4.8L 292 I6, 5.0L 307 V8, 5.7L 350 V8, 6.6L 402 V8 |
