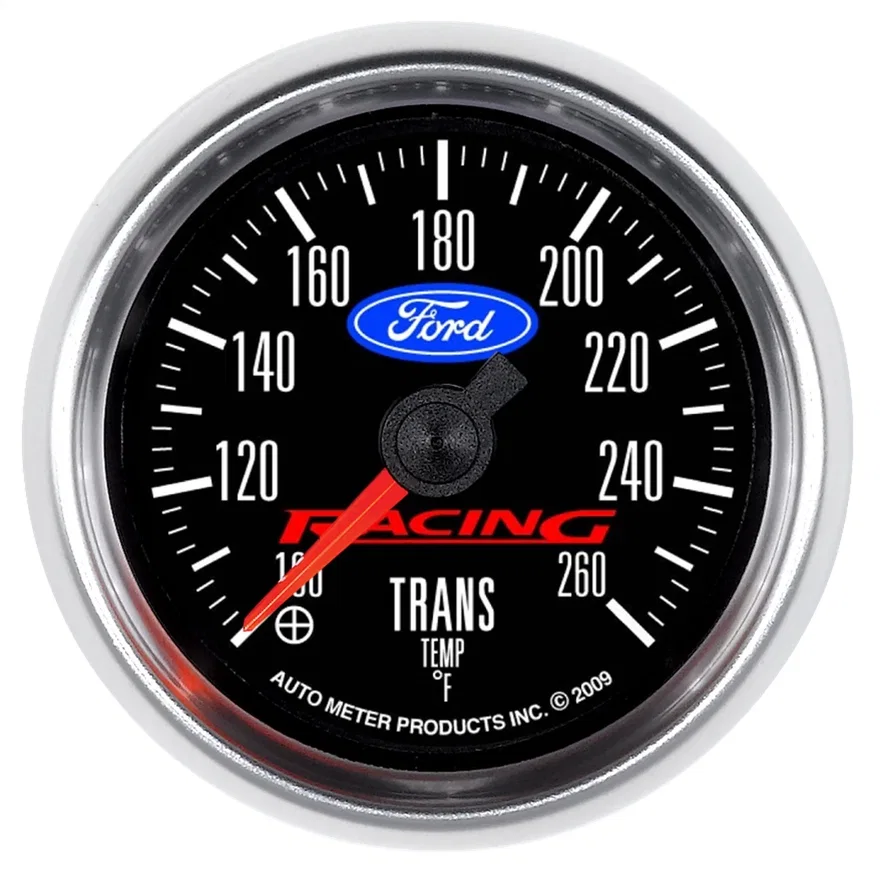

AutoMeter GAUGE; TRANS TEMP; 2 1/16in.; 100-260deg.F; DIGITAL STEPPER MOTOR; FORD RACING
Part # 880314SKU AU880314
Universal fit
| Brand | AutoMeter |
|---|---|
| Part type | Automatic Transmission Oil Temperature Gauge |
| Adapters Included | Yes |
| Analog Or Digital | Analog |
| Anti-Glare Enclosure Included | No |
| Bezel Color | Bright Anodized |
| Bezel Style | Super Bezel |
| Bulb Technology | LED |
| Electric Or Mechanical | Electric; Digital Stepper Motor |
| Face Color | Black |
| Fitting Type | 0.375 in. NPT and 0.500 in. NPT |
| Fittings Included | Yes |
| Font Color | White |
| Gauge Size | 2.0625 in. |
| Gauge Type | Transmission Temperature |
| Hole Size | 52.4mm |
| Lens | Flat Clear |
| Lighting Color | White |
| Lighting Type | LED |
| Measurement | US |
| Mounting Bracket Number | 2230 |
| Movement Type | Electric Digital Stepper Motor |
| Number Color | White |
| Outer Bezel Diameter | 2.250 in. |
| Pointer Color | Fluorescent Red |
| Sending Unit Included | Yes |
| Size | 2.3125 in. |
| Sweep | Full |
| Temperature | 100-260° F |
| Type | Electrical |
| Voltage | 8-18 V |
| Wire Harness Number | 5226 |
| UPC / GTIN | 00046074143076 |
| Warranty | 1 Year warranty |
- Ford Racing Officially Licensed Product
- Modern White LED Through-The-Dial Lighting
- Incl. Data Acquisition Grade Temp Sender
- Incl. 1/8 in. NPT Temp Sender
- Incl. 3/8 And 1/2 in. NPT Adapters
- Incl. Wiring Harness To Connect OE Fuel Rail Pressure Sensor
- Digital Stepper Motor Provides Unmatched Accuracy
Description
Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you're towing or simply trying to harness the power of a built or boosted motor, AutoMeter's Digital Stepper Motor Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. AutoMeter's most advanced 1/8 in. NPT temperature transducer is included as well as a direct plug in wiring harness for ease of installation. An optional trans cooler line manifold is available for another easy installation option.
