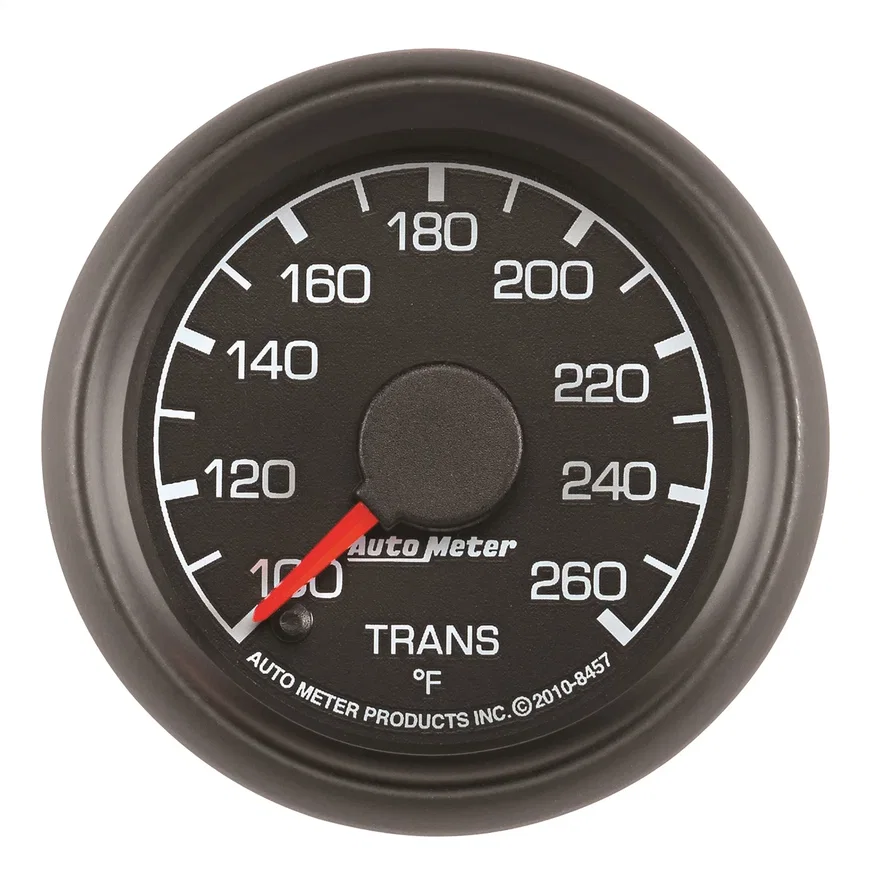

AutoMeter GAUGE; TRANS TEMP; 2 1/16in.; 100-260deg.F; STEPPER MOTOR; FORD FACTORY MATCH
Part # 8457SKU AU8457
Set your vehicle above for a fit verdict. 2 vehicles listed below.
| Brand | AutoMeter |
|---|---|
| Part type | Automatic Transmission Oil Temperature Gauge |
| Adapters Included | Yes |
| Analog Or Digital | Analog |
| Anti-Glare Enclosure Included | No |
| Bezel Color | Black |
| Bezel Style | Super Bezel |
| Bulb Technology | LED |
| Electric Or Mechanical | Electric; Digital Stepper Motor |
| Face Color | Black |
| Fitting Type | 0.500 in. NPT |
| Fittings Included | Yes |
| Font Color | White |
| Gauge Size | 2.0625 in. |
| Gauge Type | Transmission Temperature |
| Hole Size | 52.4mm |
| Lens | Flat Clear |
| Lighting Color | Green |
| Lighting Type | LED |
| Measurement | US |
| Movement Type | Electric Digital Stepper Motor |
| Number Color | White |
| Outer Bezel Diameter | 2.250 in. |
| Pointer Color | Fluorescent Red |
| Sending Unit Included | Yes |
| Size | 2.3125 in. |
| Sweep | Full |
| Type | Electrical |
| Voltage | 8-18 V |
| UPC / GTIN | 00046074084577 |
| Warranty | 1 Year warranty |
- Factory Matched LED Through-The-Dial Lighting
- Incl. Data Acquisition Grade Temp Sender
- Incl. 1/8 in. NPT Temp Sender
- Incl. 3/8 And 1/2 in. NPT Adapters
- Incl. Mounting Hardware/Installation Instructions
- Digital Stepper Motor Provides Unmatched Accuracy
Description
Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you're towing or simply trying to harness the power of a built or boosted motor, AutoMeter's Digital Stepper Motor Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. AutoMeter's most advanced 1/8 in. NPT temperature transducer is included as well as a direct plug in wiring harness for ease of installation. An optional trans cooler line manifold is available for another easy installation option.
