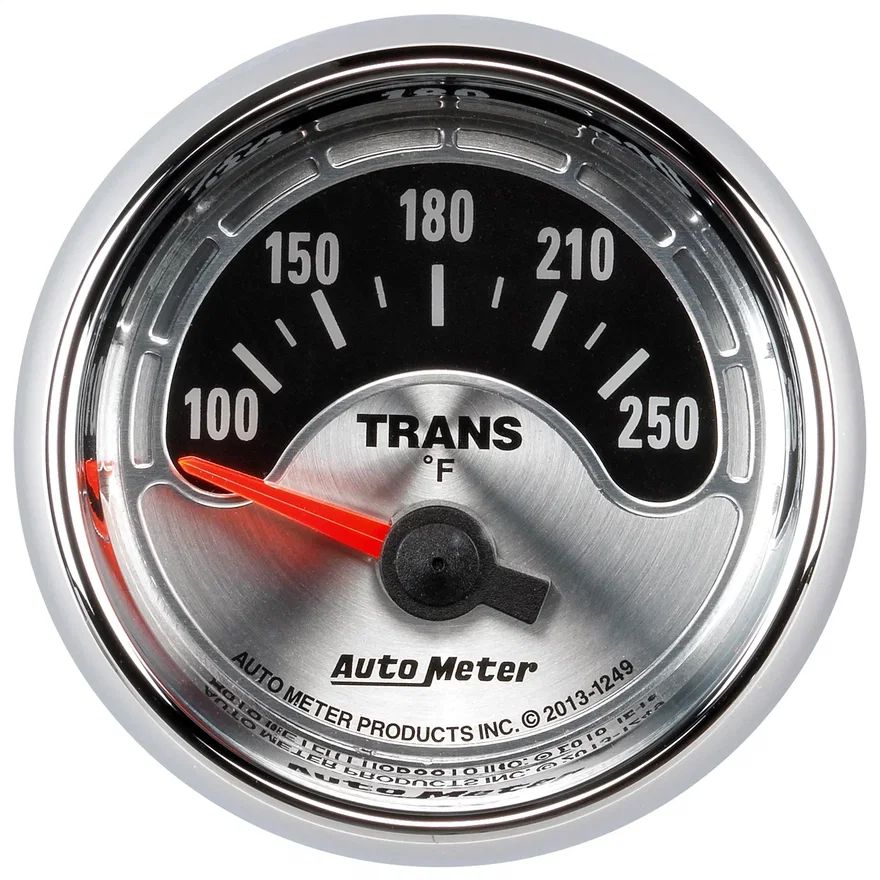

AutoMeter GAUGE; TRANS TEMP; 2 1/16in.; 250deg.F; ELEC; AMERICAN MUSCLE

Part # 1249SKU AU1249

Universal fit

Specifications
BrandAutoMeter
Part typeAutomatic Transmission Oil Temperature Gauge
Adapters IncludedYes
Analog Or DigitalAnalog
Anti-Glare Enclosure IncludedNo
Bezel ColorChrome
Bezel StyleSuper Bezel
Bulb TechnologyLED
Electric Or MechanicalElectric; Air-Core
Face ColorSilver
Fitting Type0.375 in. NPT and 0.500 in. NPT
Fittings IncludedYes
Font ColorBlack
Gauge Size52.4mm
Gauge TypeTransmission Temperature
LensFlat Clear
Lighting ColorWhite
Lighting TypeLED
MeasurementUS
Mounting Bracket Number2230
Movement TypeAir-Core
Number ColorBlack
Pointer ColorFluorescent Red
Sending Unit IncludedYes
Size2.3125 in.
SweepShort
Temperature100-250° F
TypeElectrical
Voltage8-18 V
UPC / GTIN00046074012495
Warranty1 Year warranty
  • Artic White™ 5 Gauge Set MPH/OilP/Water/Volt/Fuel
  • Incl. 1/8 NPT Sender
  • Incl. 3/8 and 1/2 in. NPT Adapter Fitting
  • Incl. Mounting Hardware and Installation Instructions

Description

Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you're towing or simply trying to harness the power of a built or boosted motor, AutoMeter's Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. A single wire 1/8 in. NPT temperature sender included to be installed in your transmission, transmission pan or with an optional transmission cooler line manifold is available for easy installation into a transmission cooler hard line.
