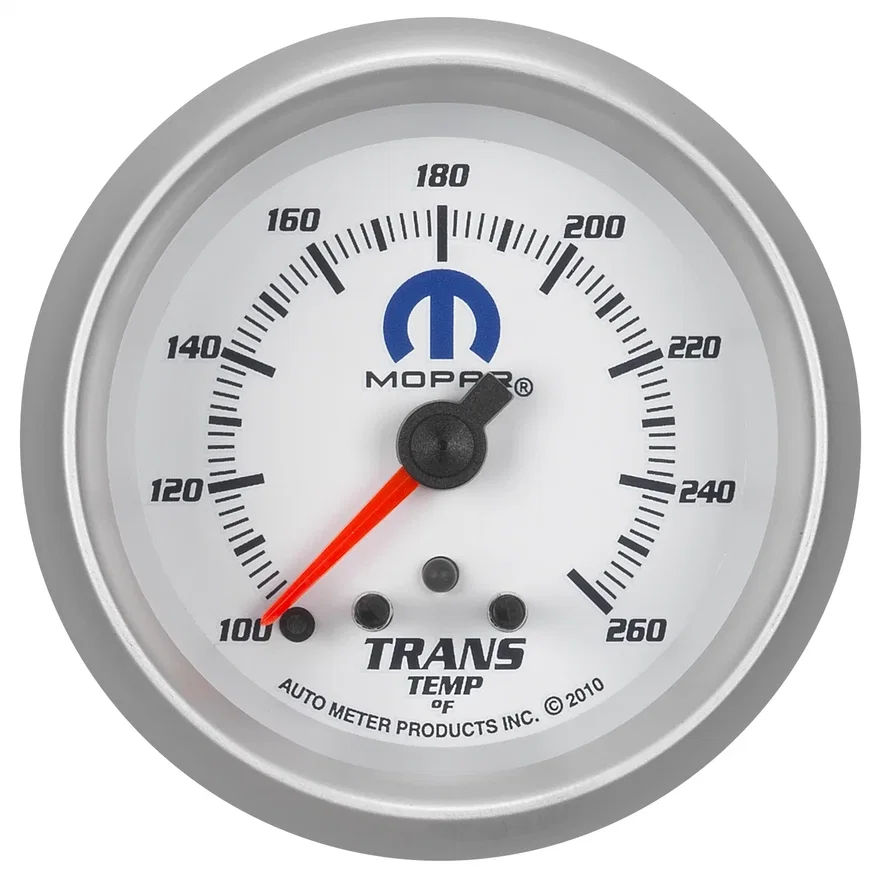

AutoMeter GAUGE; TRANS TEMP; 2 5/8in.; 260deg.F; STEPPER MOTOR W/PEAK/WARN; WHITE; MOPAR

Part # 880359SKU AU880359

Universal fit

Specifications
BrandAutoMeter
Part typeAutomatic Transmission Oil Temperature Gauge
Adapters IncludedYes
Analog Or DigitalAnalog
Anti-Glare Enclosure IncludedNo
Bezel ColorBrushed Aluminum
Bezel StyleSuper Bezel
Bulb TechnologyLED
Electric Or MechanicalElectric; Digital Stepper Motor
Face ColorWhite
Fitting Type0.375 in. NPT and 0.500 in. NPT
Fittings IncludedYes
Font ColorBlack
Gauge Size2.625 in.
Gauge TypeTransmission Temperature
Hole Size2.625 in.
LensFlat Clear
Lighting ColorBlue
Lighting TypeLED
MeasurementUS
Mounting Bracket Number3245
Movement TypeElectric Digital Stepper Motor
Number ColorBlack
Outer Bezel Diameter2.875 in.
Pointer ColorFluorescent Red
Sending Unit IncludedYes
Size2.625 in.
SweepFull
Temperature100-260° F
TypeElectrical
Voltage8-18 V
UPC / GTIN00046074154812
Warranty1 Year warranty
  • Modern LED Through-The-Dial Lighting
  • 12 And 16V Compatible
  • Incl. 1/8 in. NPT Temp Sender
  • Incl. 3/8 And 1/2 in. NPT Adapters
  • Incl. Mounting Hardware/Installation Instructions
  • One-Touch Peak Recall Functionality
  • Set Custom Alerts Specific To Your Vehicle

Description

Transmission fluid temperature is the single biggest contributing factor to the lifespan of your automatic transmission. Having an accurate, realtime measurement allows you to know when to downshift or when to take your foot out of it. Whether you're towing or simply trying to harness the power of a built or boosted motor, AutoMeter's Trans Temp Gauge will give you the most accurate possible measurement for the exact temp of your trans fluid. A single wire 1/8 in. NPT temperature sender included to be installed in your transmission, transmission pan or with an optional transmission cooler line manifold is available for easy installation into a transmission cooler hard line.
