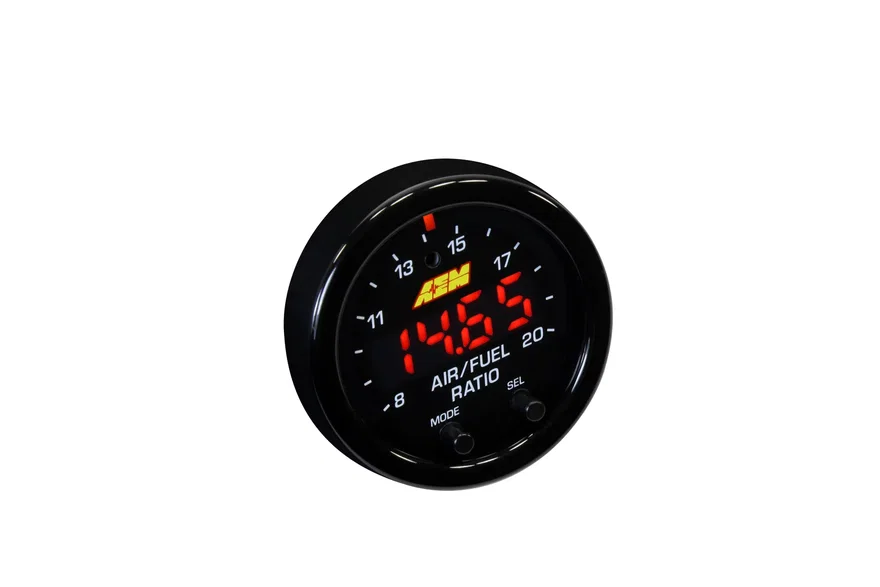

X-Series OBDII Wideband AFR Gauge Kit

AEM Electronics X-Series OBDII Wideband AFR Gauge Kit

Mfg Part #
30-0334
SKU
AEL30-0334
Brand
AEM Electronics

Universal fit: no vehicle restriction.

  • X-Series Wideband UEGO AFR Controllers Gauge were fastest responding wideband air/fuel ratio controllers in an independent test vs. 17 competitors wideband AFR controllers
  • Patented X-Digital wideband technology (Patent 9,575,030)
  • OBD-II Output; CAN based compatible with 2008 or newer vehicles
  • Includes Bosch 4.9LSU wideband UEGO sensor
  • Factory calibrated resistor does not require free-air calibration, but technology allows for free-air calibration as sensor ages if user desires
  • Compatible with vehicle/system voltages up to 16V
  • 0-5V & RS232 output for data logging and feedback control, AEMnet (CANbus) for data logging and daisy-chaining multiple controllers up to 16 cylinders
  • Can display AFR values in hundredths of %
  • 52mm gauge diameter and slim 0.825" gauge depth
  • Gauge cup depth only .200" deep
  • Auto dimming feature
  • User configurable display via buttons on the gauge face for changing AFR values, Lambda and O2%, and 3- or 4-digit display
  • Black bezel and black dual faced faceplate included (gauge only, silver bezel/white gauge option sold separately, PN 30-0300-ACC)
  • Locking connectors
$428.99 CAD Ships today
Free shipping in Canada, ships today
Availability: This product is in our Burlington warehouse.
Universal Fitment

Does this fit your vehicle?

Description

AEM's X-Series OBDII Wideband UEGO AFR Sensor Controller Gauge (PN 30-0334) provides tuners who are using piggyback tuning modules or open source software with the ability to view AFR through the factory CAN-bus stream that is output by the factory ECU, and deliver the most accurate, safe and powerful tune.

Warranty: 12 Months - Excluding Bosch O2 Sensor warranty
